Google Analytics Integration

Connecting MCP Express to GA4 lets your AI assistant pull live analytics data directly: audience reports, traffic breakdowns, real-time visitors, event analytics, and conversion summaries without manually copying dashboards or exporting CSVs.

This integration uses a Google service account, which is a non-human identity that authenticates on your behalf.

Setup Steps​

Follow these in order. Most setup issues happen when one step is skipped.

Step 1: Set up a Google Cloud project​

Why this matters: Google requires all API access to run through a Cloud project.

  1. Go to Google Cloud Console.

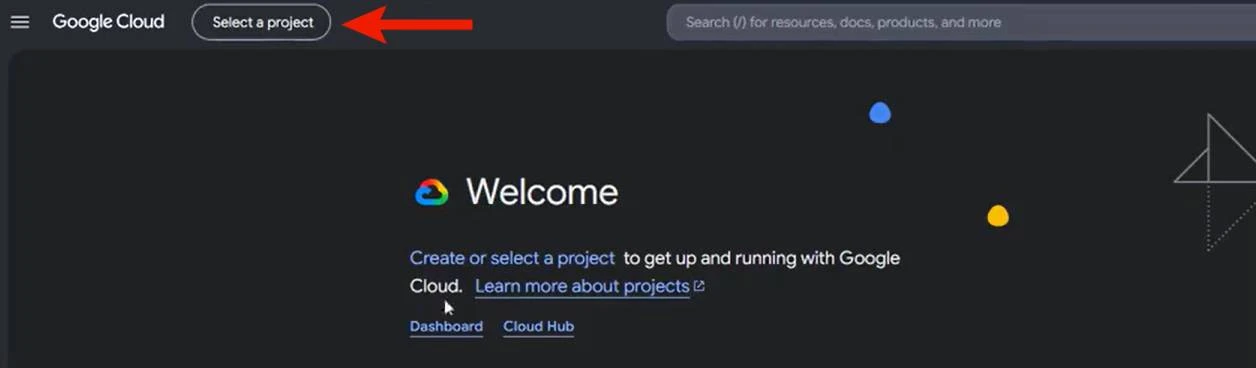

  2. In the top navigation bar, click the project selector dropdown. Google Cloud save/select project flow

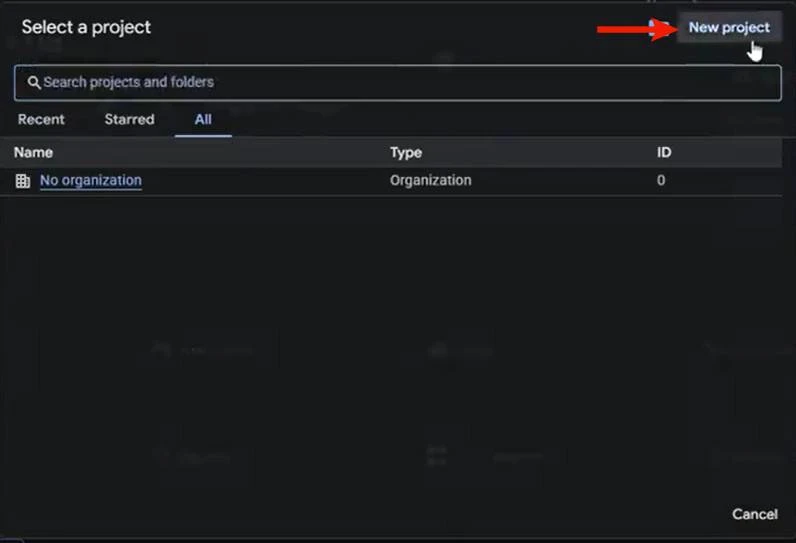

  3. Click New Project if needed, or select an existing project. Google Cloud project selector and create project flow
note

If your team already has a Cloud project for data services, use that project to keep billing and IAM centralized.

Step 2: Enable the Google Analytics Data API​

Why this matters: MCP Express uses this API to read GA4 reports.

  1. In Google Cloud Console, open the left navigation menu.

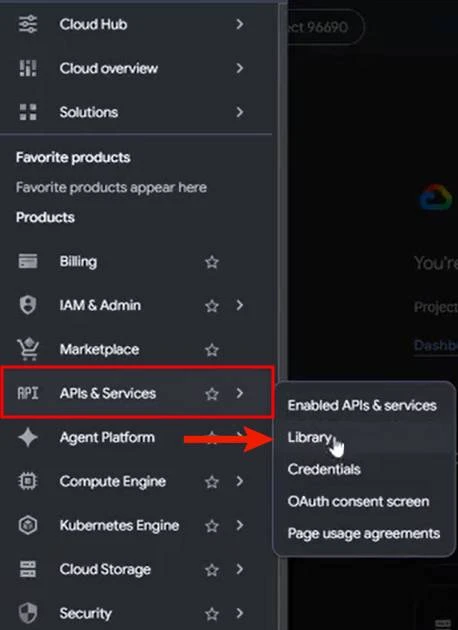

  2. Go to APIs & Services -> Library.

    APIs and Services section in Google Cloud Console

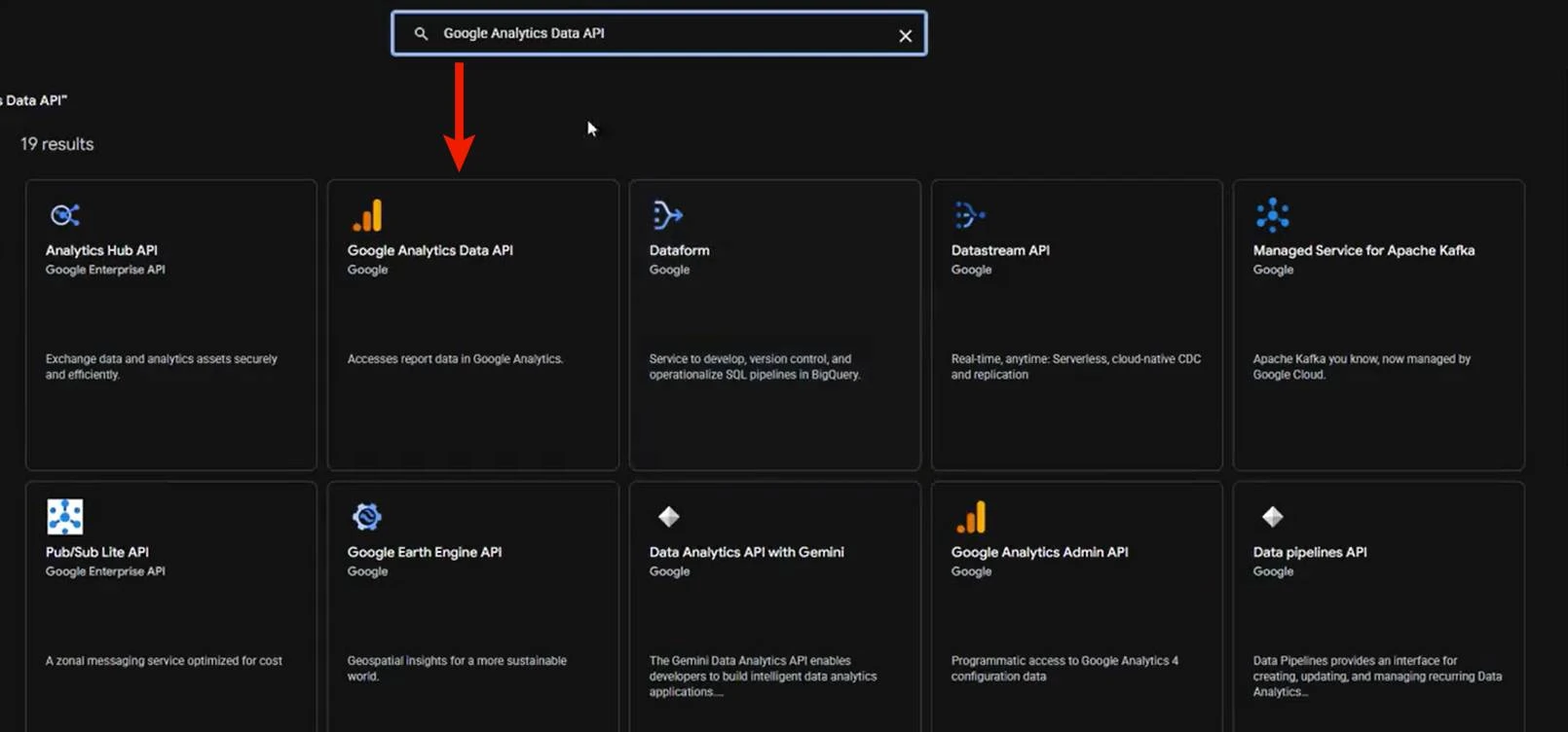

  3. Search for Google Analytics Data API. Search for Google Analytics Data API

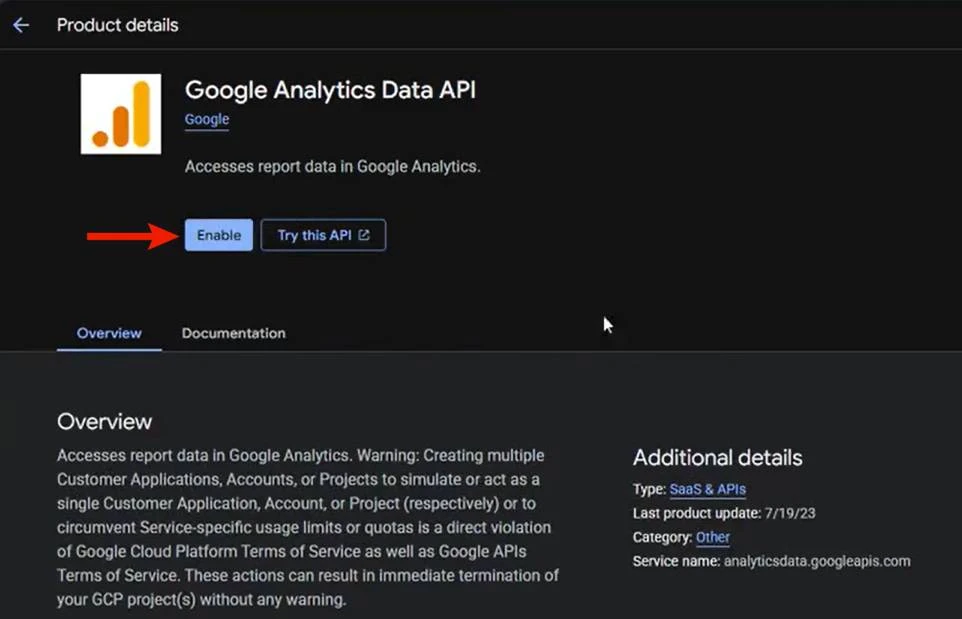

  4. Open it and click Enable. Google Analytics Data API result page

Step 3: Create a service account​

Why this matters: MCP Express uses this account to authenticate without your personal Google login.

  1. Open the left navigation menu.

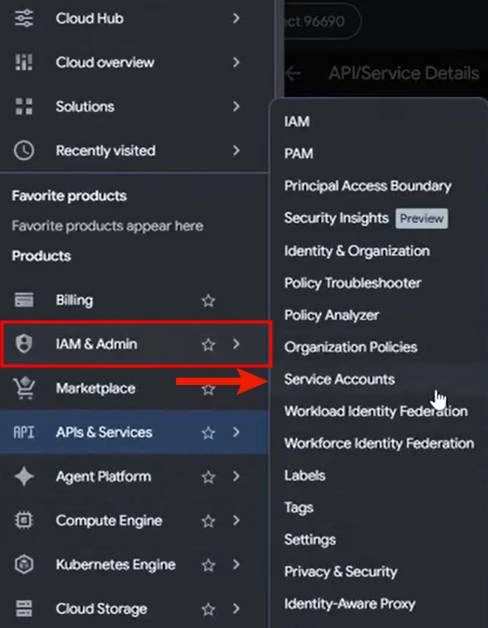

  2. Go to IAM & Admin -> Service Accounts. IAM and Service Accounts in Google Cloud Console

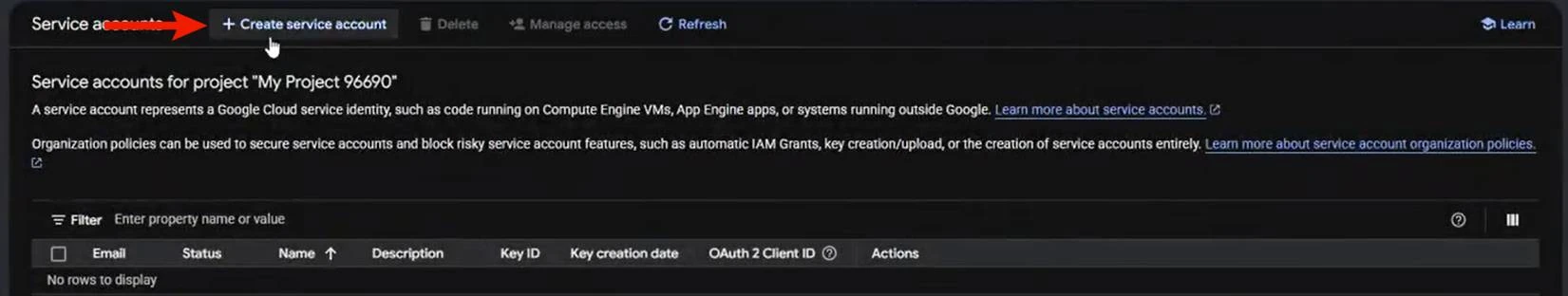

  3. Click Create Service Account. Create a new service account
  4. Name it something clear like mcp-express-analytics.
  5. Click Create and Continue.
  6. Skip project role assignment.
  7. Click Done.

Step 4: Download the JSON key​

Why this matters: This key file is the credential MCP Express needs.

  1. Open the service account you created.

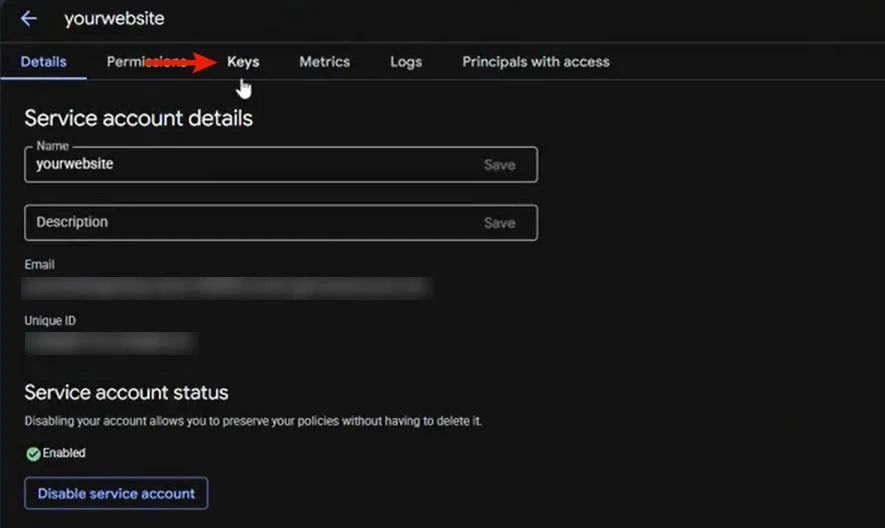

  2. Go to the Keys tab. Service account keys tab

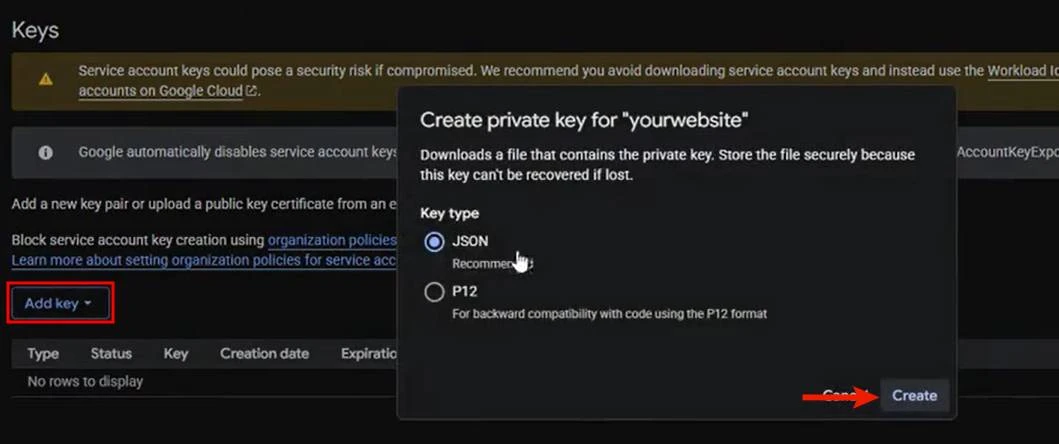

  3. Click Add Key -> Create new key. 4. Choose JSON and click Create. 5. Save the downloaded file securely. Create a new JSON key
Protect this file

Treat the JSON key as a password. If it is exposed, delete the key in Google Cloud and create a new one immediately.

Step 5: Grant service account access in GA4​

Why this matters: Creating a service account in Google Cloud does not automatically grant GA4 property access.

  1. Go to Google Analytics and open your GA4 property.

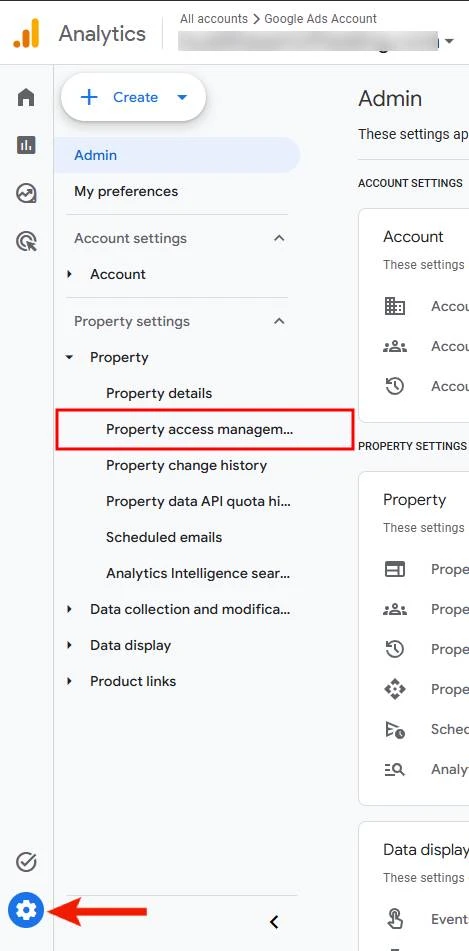

  2. Click Admin (bottom-left). GA4 property access management
  3. Go to Property Access Management.

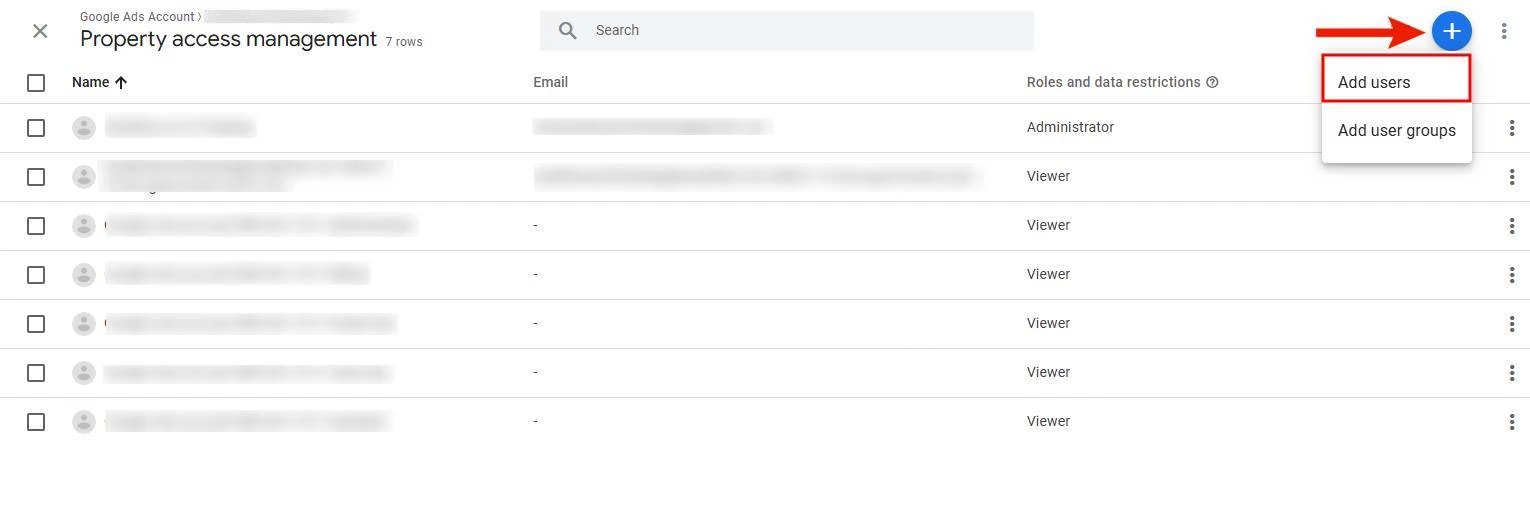

  4. Click + -> Add users. GA4 add user dialog
  5. Add the service account email.
  6. Set role to Viewer.
  7. Click Add.
tip

Viewer is sufficient. Do not grant Editor or Administrator roles.

If the GA4 UI rejects the service account email, use the GA4 Admin API workaround:

  1. Open GA4 Admin API Explorer - accessBindings.create.
  2. Set parent to properties/YOUR_PROPERTY_ID.
  3. Use this request body:
{
  "user": "your-service-account@your-project-id.iam.gserviceaccount.com",
  "roles": ["predefinedRoles/viewer"]
}
  1. Click Execute. A 200 response confirms access was added.

Step 6: Find your GA4 Property ID​

  1. In GA4, go to Admin -> Property Settings.
  2. Copy the Property ID (numbers only, for example 123456789).
note

Do not use the Measurement ID (G-...). You need the numeric Property ID.

Step 7: Connect in MCP Express​

  1. Open the Google Analytics integration in MCP Express.
  2. Paste the full JSON content into Service Account JSON.
  3. Enter your Property ID.
  4. Choose the action(s) your AI should be allowed to call.
  5. Give the tool a distinct name so your AI can route requests correctly.

Connection Parameters​

ParameterDescriptionRequired
Service Account JSONFull content of your downloaded service account JSON key.Yes
Property IDGA4 property identifier. Use plain numeric ID (for example 123456789) or properties/123456789.Yes

Verify the Connection​

Run Get Realtime Users first. It does not require a date range and is the fastest validation check.

If you get a permission or access error, check the following:

  • The same service account email was added in GA4 Property Access Management.
  • The Google Analytics Data API is enabled in the correct Google Cloud project.
  • The JSON key belongs to the same service account you granted GA4 access.
  • The Property ID points to the intended GA4 property.

Supported Actions​

  • Get Active Users: Daily sessions, active users, and new users.
  • Get Top Pages: Most visited pages with page views and engagement.
  • Get Traffic Sources: Channel/source/medium performance.
  • Get Realtime Users: Live active users and active screens/pages.
  • Get Top Events: Most frequent GA4 events.
  • Get User Demographics: Country, city, or language breakdown.
  • Get Device Breakdown: Device category, OS, and browser mix.
  • Get Landing Pages: Session-entry pages with session quality metrics.
  • Get Conversions: Conversion events and conversion-driving channels.
  • Compare Date Ranges: Period-over-period comparison.

Security Checklist​

  • Assign only Viewer role in GA4.
  • Use one service account per integration where possible.
  • Store JSON credentials in a secrets vault, not in source control.
  • Rotate service account keys on a schedule.
  • Revoke and replace any key immediately if exposed.
  • Keep result limits bounded for actions that support limits.

Known Limitations​

  • This integration is read-only and cannot modify GA4 configuration.
  • Real-time reports are for current activity, not historical analysis.
  • Some demographics (especially city-level) can be sparse in low-traffic properties.
  • Historical data exists only from when GA4 tracking was installed.

What You Can Ask After Connecting​

  • "What are my top traffic sources this week?"
  • "How many users converted on the pricing page yesterday?"
  • "Show me real-time visitors right now."
  • "Compare this month's sessions to last month."
